(PHP 4 >= 4.0.6, PHP 5, PHP 7, PHP 8)
imagefilledellipse — Draw a filled ellipse
$image
,$center_x
,$center_y
,$width
,$height
,$color
Draws an ellipse centered at the specified coordinate on the given
.
A GdImage object, returned by one of the image creation functions, such as imagecreatetruecolor().
center_x
x-coordinate of the center.
center_y
y-coordinate of the center.
width
The ellipse width.
height
The ellipse height.
color
The fill color. A color identifier created with imagecolorallocate().
Version | Description |
---|---|
8.0.0 |
image expects a GdImage
instance now; previously, a valid gd resource was expected.
|
Example #1 imagefilledellipse() example
<?php
// create a blank image
$image = imagecreatetruecolor(400, 300);
// fill the background color
$bg = imagecolorallocate($image, 0, 0, 0);
// choose a color for the ellipse
$col_ellipse = imagecolorallocate($image, 255, 255, 255);
// draw the white ellipse
imagefilledellipse($image, 200, 150, 300, 200, $col_ellipse);
// output the picture
header("Content-type: image/png");
imagepng($image);
?>

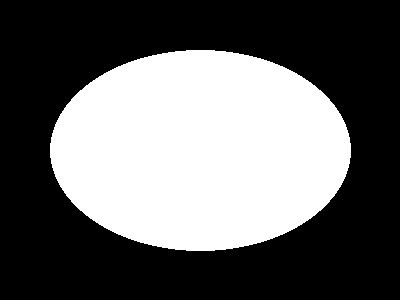

The above example will output something similar to:
Note:
imagefilledellipse() ignores imagesetthickness().
